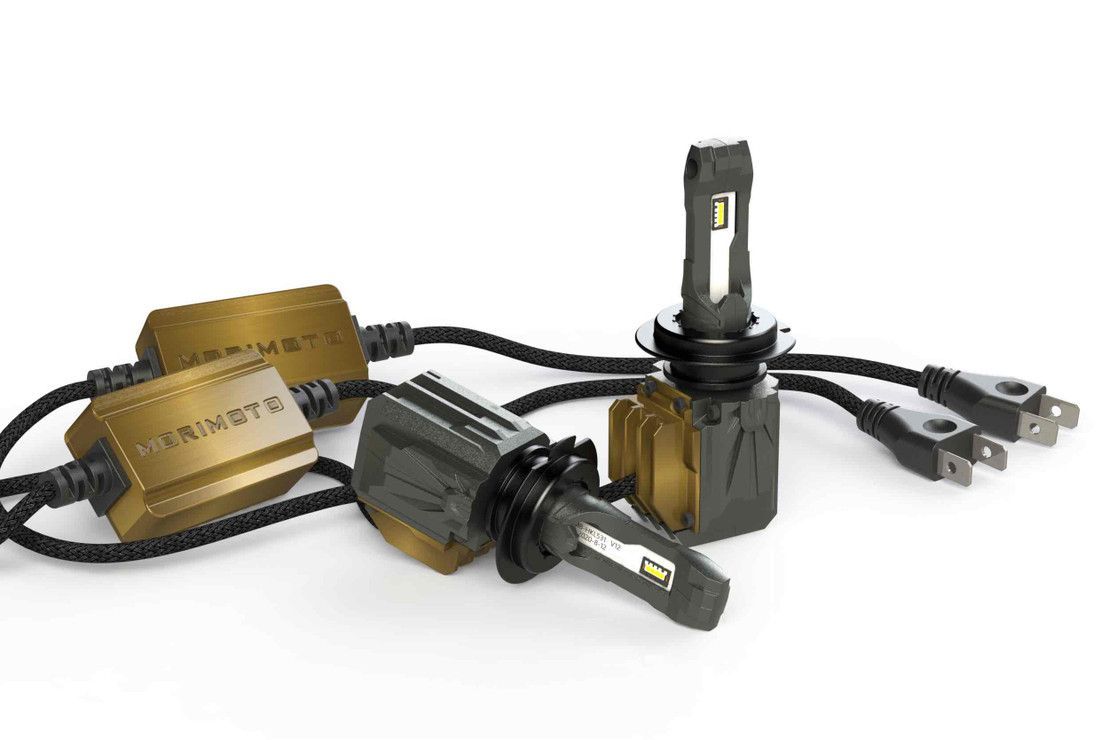

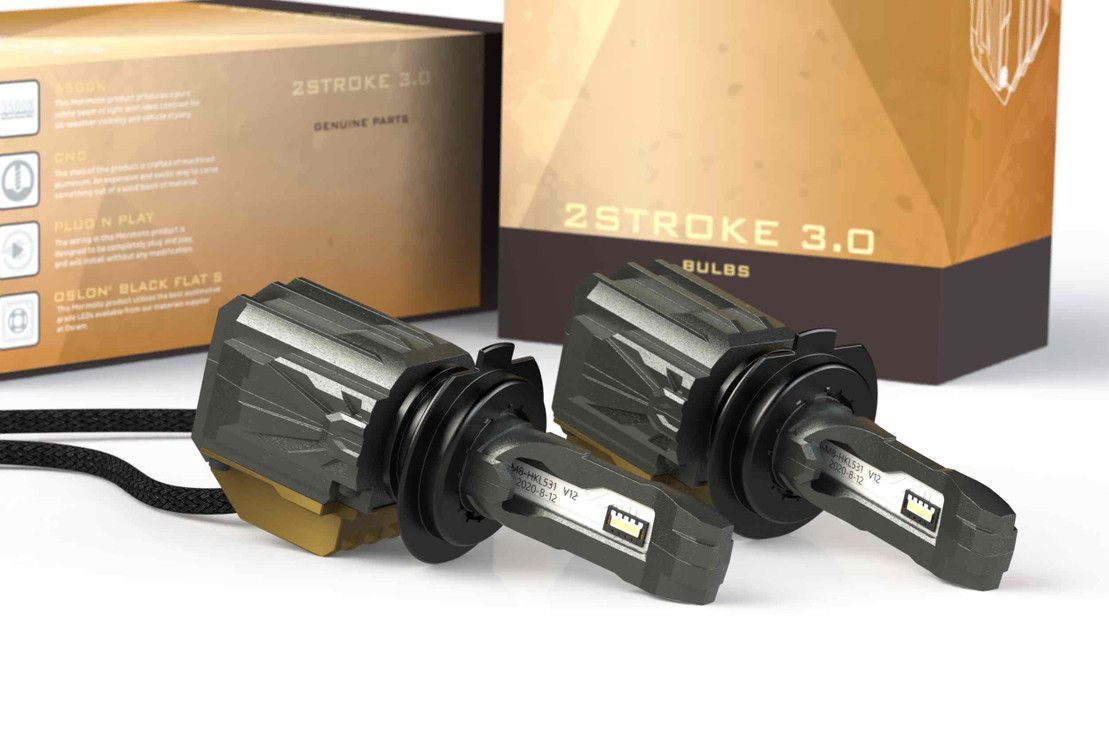

Morimoto H7 3.0

Product Details

Product Overview:

Over the past year, Morimoto has been dedicated to developing a groundbreaking LED bulb - the 2Stroke 3.0. This innovative bulb re-creates the original beam pattern from your optics, achieving superior results while using less energy. Experience enhanced visibility on the road as a driver, while ensuring less glare for oncoming traffic compared to any other LED bulb available. The 2Stroke 3.0 is currently not DOT approved for use in headlights within the United States, but it is an ideal choice for foreign markets and fog light applications.

Superior Beam Quality:

The 2Stroke 3.0 sets a new industry standard with its advanced PCB technology, boasting an incredibly low emission surface interval of just 2mm. The PCB core measures a mere 1.0mm in thickness, while the dielectric layer is 300um and the circuit pattern is 140um. Additionally, the Osram Oslon HKL351.TE LED chips are an impressive .43mm each. With a total cubic volume of 4.46mm, this LED bulb perfectly simulates the filament size of an incandescent bulb, resulting in precise beam distribution.

Optimised Focal Length:

Each size in the 2Stroke 3.0 lineup has undergone meticulous optimisation to ensure optimal output in its specific application. The critical reference distance is calculated based on the bulb base's geometry and the footprint of the Osram HKL emitter. Unlike many other LED bulbs on the market that rely on a one-size-fits-all reference distance, Morimoto's 2Stroke 3.0 guarantees consistency and accuracy through specialised quality control tools.

360 Degrees of Rotation:

The 2Stroke 3.0 LED bulbs feature a fully adjustable base, allowing for optimal utilisation of optical facets in various reflector or projector setups. To achieve the best results, the light-emitting diodes must be positioned at the 3-o-clock and 9-o-clock positions. Since different headlight and fog light assemblies have varying standards, Morimoto ensures that all bulbs in the 2Stroke 3.0 range are fully adjustable. The bulbs equipped with a twist-to-lock mechanism offer adjustability in 15-degree intervals, while those that press-fit or clip into the housing use an omni-adjustable rotation mechanism.

Efficient Thermal Management:

Morimoto's 2Stroke 3.0 sets a new standard for cooling with its unique internal circulation cooling system. The high-speed fan, sealed within the bulb, operates at 12,000 rpm to draw cool air into the bulb body and expel warm air back into the housing. This results in effective cooling of the bulb and increased resistance to snow and ice buildup on the lens during colder months. Unlike other LED bulbs, the 2Stroke 3.0's cooling system remains impervious to outside elements, ensuring a longer lifespan.

DRL Drive Compatibility:

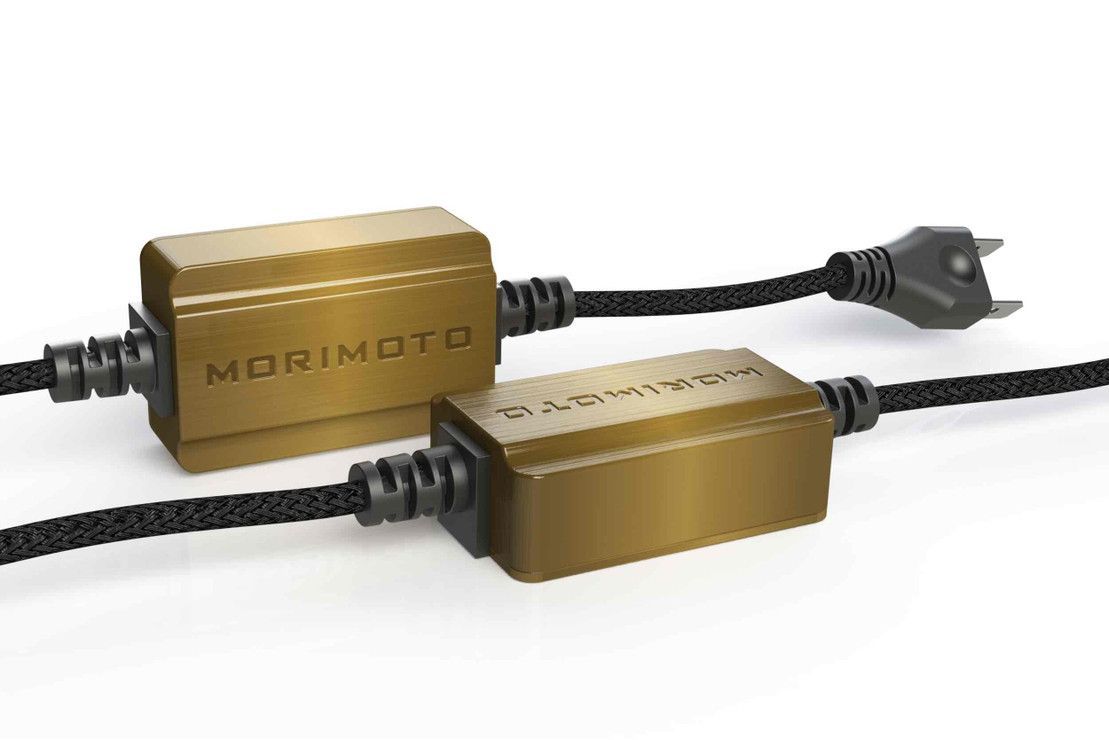

Designed to accommodate a wide range of input voltage, the LED driver of the 2Stroke 3.0 makes it suitable for low voltage daytime running lights found in modern vehicles. When the driver detects 6-9V of input, the system logic automatically switches to produce only 30% of the standard output. The low power drive rate of 250mA generates 460lm per emitter, making it ideal for use as a daytime running light. During this mode, the cooling fan shuts off to conserve power and extend the lifespan of the bulb. Note that the DRL-Drive function is intended for non-US markets.

Trusted Brand:

With over a decade of experience, Morimoto has earned a well-deserved reputation among car enthusiasts worldwide. Known for carrying the internet's best selection of high-performance automotive and powersport lighting products at competitive prices, Morimoto is backed by a team of knowledgeable enthusiasts ready to assist with any questions or recommendations for your project.

Discover the Morimoto 2Stroke 3.0 LED bulb, the pinnacle of LED technology, and experience unparalleled performance, efficiency, and adaptability for your lighting needs.
