Morimoto H10/9005 3.0

Product Details

Performance Benchmark:

Throughout the past year, Morimoto has been dedicated to the development of an innovative LED bulb, setting a new standard in automotive lighting. This groundbreaking creation meticulously replicates the original optics' beam pattern by achieving more with less. This revolutionary technology not only enhances your visibility as a driver but also minimizes glare for oncoming traffic, surpassing any other LED bulb currently available in the market. While LED bulbs are still pending DOT approval for use in headlights within the United States, international markets and fog light users can revel in the ultimate plug-and-play LED solution: the 2Stroke 3.0. (Patents Pending)

Unparalleled Beam Excellence:

At the heart of the 2Stroke 3.0 lies advanced PCB technology, raising the bar with a groundbreaking emission surface interval of a mere 2mm in total. With a PCB core thickness of just 1.0mm, a 300um dielectric layer, a 140um circuit pattern, and Osram Oslon HKL351.TE LED chips measuring a mere 0.43mm each, the cumulative cubic volume amounts to 4.46mm. These specifications, combined with the 1.03 x 4.33mm light-emitting surface of the LEDs, result in a total volume that closely mimics the filament size of an incandescent bulb. This precision is critical for achieving optimal beam distribution, distinguishing the Morimoto 2Stroke 3.0 as the most accurate LED bulb on the global market.

Optimised Focal Precision:

The 2Stroke 3.0 series has undergone meticulous optimisation for optimal output within their designated applications. The pivotal reference distance is meticulously calculated based on both the bulb base's geometry and the Osram HKL emitter's footprint. To ensure unwavering consistency, specialised tools have been devised to verify the precision of each bulb as it leaves the production line. Diverging from the common practice of using a single reference distance for all sizes in a series, Morimoto goes above and beyond by tailoring each bulb to its unique application.

Full-Spectrum Adjustment:

Distinguishing itself further, the 2Stroke 3.0 LED bulbs are equipped with a fully adaptable base. This feature empowers the LEDs to maximize the potential of optical facets within various reflectors or projectors, necessitating a 3-o-clock and 9-o-clock orientation. Acknowledging the absence of a universal standard among different headlight and fog light assemblies, every bulb in the 2Stroke 3.0 lineup boasts full adjustability. The inclusion of a geared step rotational adjuster mechanism facilitates precise adjustments in 15-degree increments for twist-to-lock bulbs, while an omni-adjustable rotation mechanism caters to press-fit or clip-in bulbs.

Innovative Thermal Control:

The Morimoto 2Stroke 3.0 introduces a pioneering approach to thermal management. By sealing the high-speed fan within the bulb, this innovation becomes the first actively cooled LED bulb to remain impervious to external elements. The ingenious internal circulation cooling system leverages a 12,000-rpm cyclone fan to draw cool air into the bulb and expel warm air outward, back into the housing. Cold air is ingeniously directed past the PCB's sidewall on the intake side, effectively cooling the bulb while simultaneously elevating the ambient temperature inside the housing. This innovation not only safeguards the bulb's longevity but also enhances its resilience against snow and ice accumulation on the lens during wintry conditions. Remarkably, the cooling system bestows a weather-related advantage absent in competing products.

Distinctive DRL Capability:

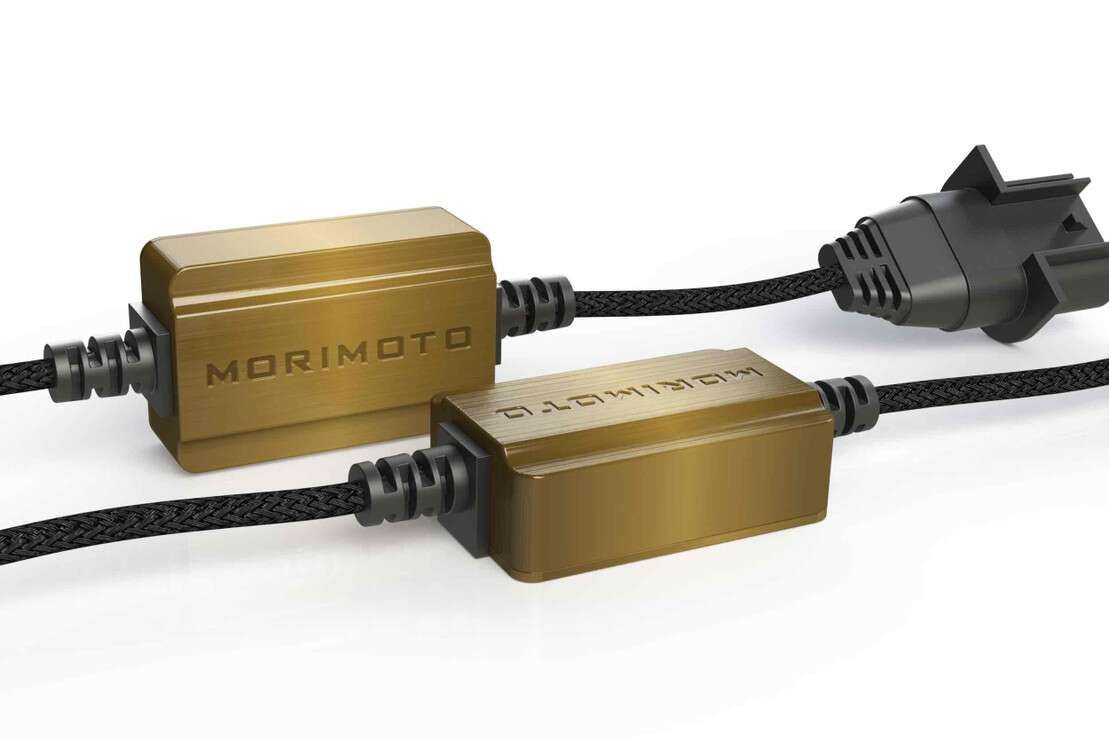

The LED Driver within the 2Stroke 3.0 is meticulously configured to accommodate a broad range of input voltages, rendering it compatible with the low voltage daytime running lights prevalent in modern vehicles. Upon detecting an input of 6-9V, the system logic seamlessly transitions to a 30% output level of the standard illumination. Operating at a low-power drive rate of 250mA, each emitter emits a mere 460lm, enabling the 2Stroke 3.0 to function adeptly as a daytime running light. During this mode, the cooling fan is intelligently deactivated to conserve power and extend the bulb's lifespan. For vehicles equipped with a PWM-based DRL signal, an inline PWM module generating a clean DC6V is indispensable. Notably, the driver is expertly encapsulated, affording it complete weather resistance. It's important to highlight that the DRL-Drive function is exclusively tailored for utilisation in non-US markets.

Enduring Trust:

With a legacy spanning over a decade, Morimoto has steadfastly built an exceptional reputation. Enthusiasts worldwide recognise that TRS boasts an unparalleled assortment of high-performance automotive and powersport lighting products at unmatched prices. Anchored by an exceptional team of true aficionados, our reputation is fortified by our firsthand experience with these products on our own cars, trucks, and bikes. In need of recommendations for your project's components? Seeking technical guidance? Exploring wholesale possibilities? We encourage you to connect with us, confident in our expertise and commitment to your satisfaction.
