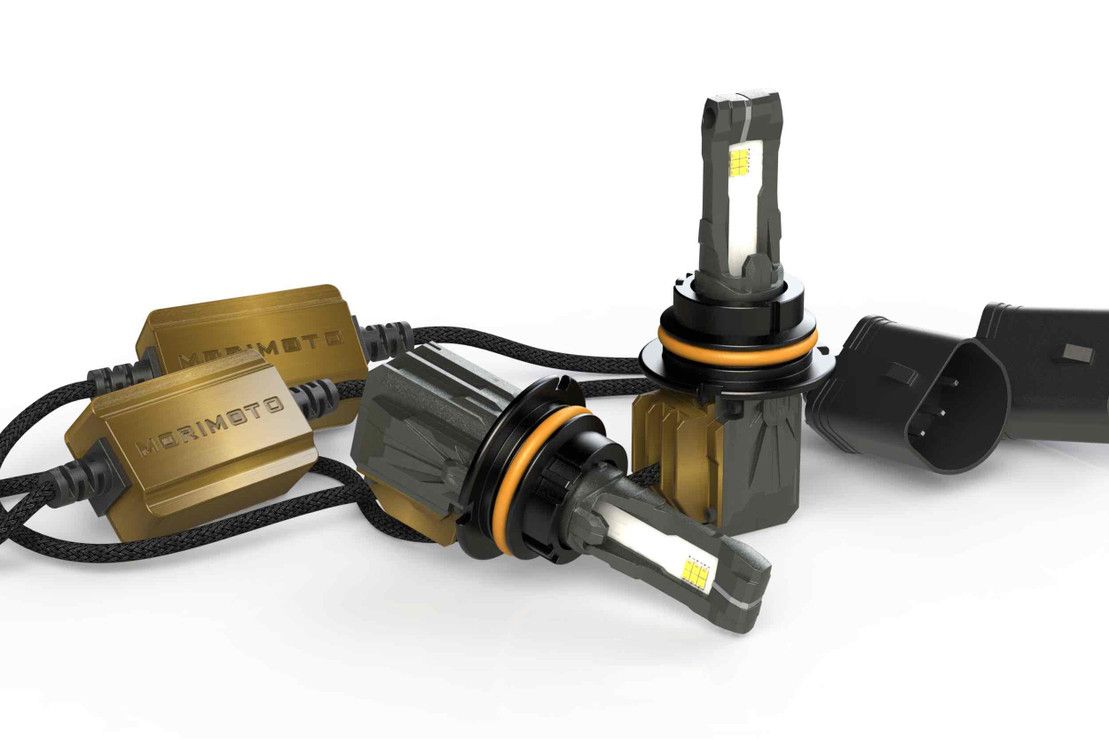

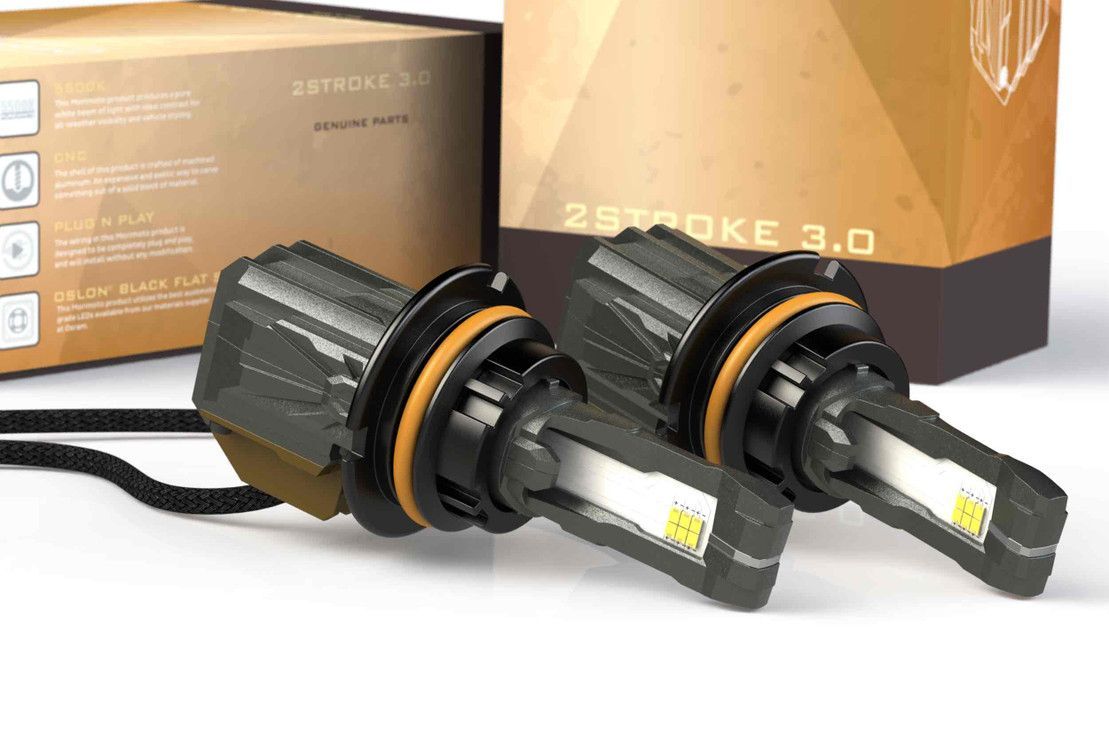

Morimoto 9004/9007 3.0

Product Details

BENCHMARK ACHIEVED:

Over the preceding year, Morimoto embarked on an intensive development journey to craft an innovative LED bulb that revolutionises lighting technology. The result? An LED bulb that masterfully replicates the original beam pattern from your optics, achieving exceptional efficiency through ingenious design. The Morimoto 2Stroke 3.0 LED bulb is poised to illuminate roads with unparalleled brilliance for drivers, while concurrently mitigating glare for oncoming traffic—an accomplishment unparalleled by any other LED bulb currently in the market. Although LED bulbs remain pending DOT approval for headlight use in the United States, international markets and fog light aficionados can bask in the glow of the finest plug-and-play LED bulb to date. The 2Stroke 3.0 is a pinnacle of innovation, complete with patent applications in progress.

EXEMPLARY BEAM CHARACTERISTICS:

The heart of the 2Stroke 3.0's brilliance lies in its cutting-edge PCB technology, which proudly establishes a new industry benchmark for an emission surface interval of a mere 2.4mm. Remarkably slender, the PCB core measures a mere 1.0mm in thickness. Additional layers include the 300um dielectric layer, the 140um circuit pattern, and the Philips Lumileds Luxeon Z LED chips, which boast a mere .59mm of prominence each. The aggregate result, combined with the LEDs' precise light-emitting surface, culminates in a total cubic volume of 4.46mm. A triumph of engineering, the Morimoto 2Stroke 3.0 emerges as the preeminent LED bulb, mirroring the filament size of an incandescent bulb with unparalleled accuracy—a hallmark feature pivotal to achieving optimal beam dispersion.

PRECISE FOCAL LENGTH OPTIMIsATION:

Each member of the 2Stroke 3.0 lineup has been meticulously fine-tuned to deliver optimal output within its intended application. This precision hinges on the critical reference distance, which derives from the intricate interplay between bulb base geometry and the Osram HKL emitter's footprint. To ensure uniformity, specialised tools have been meticulously devised to ascertain the accuracy of each bulb as it emerges from the production line. In stark contrast to conventional LED bulbs that adhere to a 'one-size-fits-all' reference distance for all sizes in the series, the Morimoto 2Stroke 3.0 defies convention through its bespoke approach.

COMPLETE 360-DEGREE ADJUSTABILITY:

The 2Stroke 3.0 LED bulbs are ingeniously designed with a fully adjustable base, a pivotal feature to harness the full potential of the optical facets in any reflector or projector. To unlock this potential, the light-emitting diodes must assume the 3-o'clock and 9-o'clock positions. Acknowledging the diverse configurations of various headlight and fog light assemblies, every bulb within the 2Stroke 3.0 collection boasts comprehensive adjustability. Equipped with a precision gear-driven rotational adjuster mechanism, these twist-to-lock bulbs offer 15-degree interval adjustability. Meanwhile, press-fit or clip-in bulbs incorporate an omni-adjustable rotation mechanism.

EFFICIENT THERMAL MANAGEMENT:

Following installation, the 2Stroke 3.0 bulb operates alongside an enclosed high-speed fan—an innovation rendering it the world's inaugural actively cooled LED bulb impervious to external elements. This unique internal circulation cooling system employs a 12,000-rpm cyclone fan to usher cool air into the bulb's core, subsequently expelling warmed air into the housing. Drawing in cold air along the PCB's sidewall facilitates heat exchange, with expelled air emerging from the bulb's opposite side. As a result, the bulb maintains optimal temperature, concurrently elevating resistance to winter-induced snow and ice accumulation on the lens. This thermal management system safeguards bulb longevity and confers a meteorological advantage unparalleled in the market.

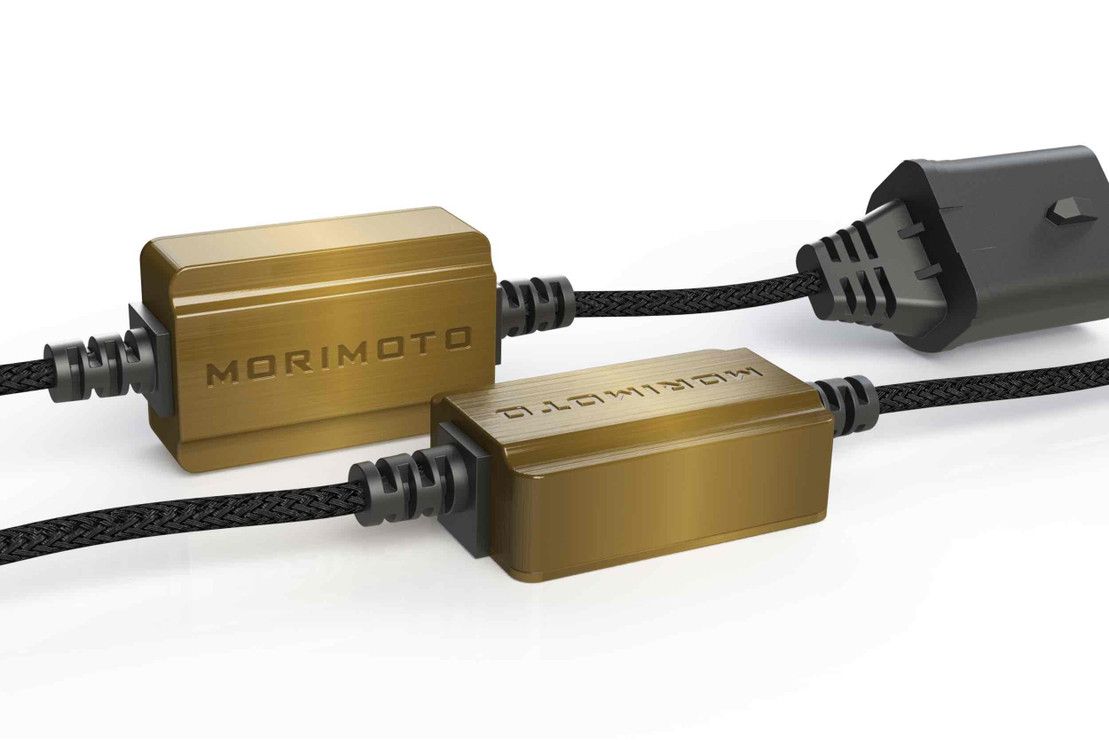

ADVANCED LED DRIVER:

The pinnacle of the 2Stroke 3.0 9007 Bulbs resides in the die-cast aluminium LED Driver, exquisitely electroplated and rigorously sealed with a double-lip seal. Coupled with premium over-molded wiring, these bulbs are primed to conquer all weather conditions, ensuring unwavering performance.
