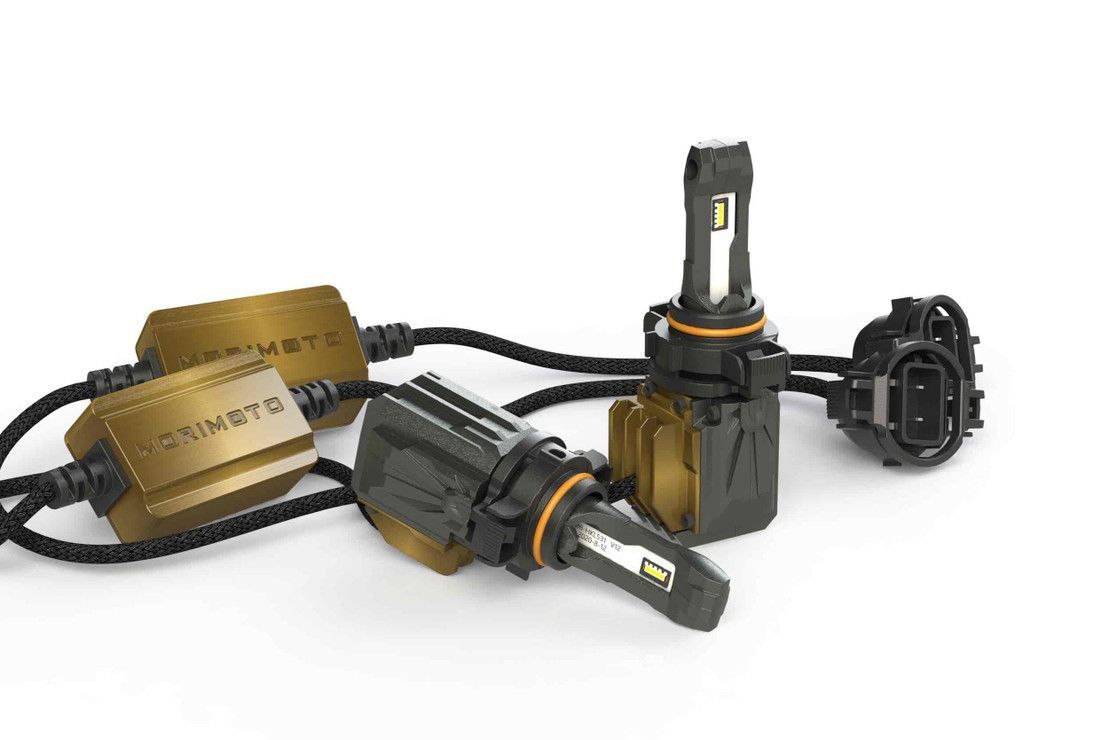

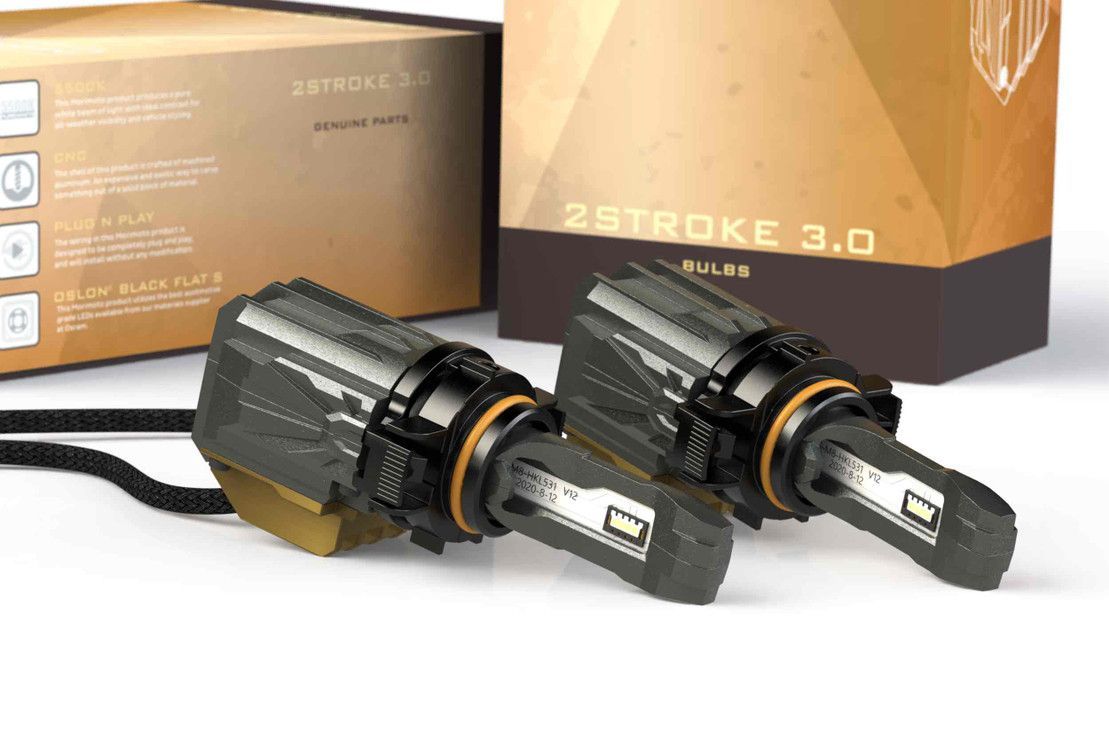

Morimoto 5202 3.0

Product Details

ACHIEVING A NEW STANDARD:

Over the past year, Morimoto dedicated relentless effort to craft a groundbreaking LED bulb. This innovation adeptly mirrors your optics' original beam pattern, achieving remarkable results through a 'less is more' approach. The result is a light source that enhances road illumination for drivers while significantly reducing glare for oncoming traffic—unparalleled by any other LED bulb in today's market. While US headlight approval remains pending for LED bulbs, the international and fog light communities can indulge in the pinnacle of plug-and-play LED technology—the remarkable 2Stroke 3.0.

UNSURPASSED LIGHT QUALITY:

At the core of the 2Stroke 3.0's brilliance lies advanced PCB technology that redefines industry standards with an emission surface interval as minuscule as 2mm. Impressively sleek, the PCB core measures just 1.0mm in thickness. Augmenting this innovation is the 300um dielectric layer, the 140um circuit pattern, and the astonishing Osram Oslon HKL351.TE LED chips, each boasting an insignificantly small .43mm size. Coupled with the LEDs' light-emitting surface measuring 1.03 x 4.33mm, this harmonious design generates a total cubic volume of 4.46mm. Notably, the Morimoto 2Stroke 3.0 meticulously replicates the filament size of an incandescent bulb, a critical factor for ensuring precise beam distribution.

PRECISE FOCAL LENGTH TUNING:

Each variant within the 2Stroke 3.0 lineup has been subjected to meticulous fine-tuning, ensuring optimal output tailored to its designated application. This intricate process is informed by the critical reference distance—a calculation that draws from the bulb base's geometry and the Osram HKL emitter's footprint. To ensure uniformity, specialized tools have been devised to rigorously verify each bulb's precision as it emerges from the production line. A departure from conventional LED fog light bulbs that adhere to a generic reference distance for all sizes, the Morimoto 2Stroke 3.0 embraces a bespoke approach.

FULL 360-DEGREE ADJUSTABILITY:

Setting itself apart with ingenious design, the 2Stroke 3.0 LED bulbs boast a fully adjustable base—a pivotal feature that optimizes the potential of optical facets in reflectors or projectors. To unlock this potential, the light-emitting diodes are strategically aligned at the 3-o'clock and 9-o'clock positions. Recognizing the diverse configurations of headlight and fog light assemblies, every bulb within the 2Stroke 3.0 series enjoys comprehensive adjustability. For twist-to-lock bulbs, a precision gear-driven rotational adjuster mechanism enables 15-degree interval adjustments. Meanwhile, press-fit or clip-in bulbs feature an omni-adjustable rotation mechanism.

EFFICIENT HEAT MANAGEMENT:

Following installation, the 2Stroke 3.0 bulb employs an enclosed high-speed fan—an innovation that makes it the pioneer of actively cooled LED bulbs with a fan impervious to external elements. This inventive internal circulation cooling system utilizes a 12,000-rpm cyclone fan, ushering cool air into the bulb's core while expelling heated air into the housing. Cold air is drawn in along the PCB sidewall for effective heat exchange, with expelled air emerging from the opposite side of the bulb. This advanced thermal regulation cools the bulb efficiently while warming the housing's ambient temperature, enhancing resistance to snow and ice accumulation on the lens during winter. The 2Stroke 3.0's cooling system not only safeguards bulb longevity but also offers unmatched performance in adverse weather conditions.

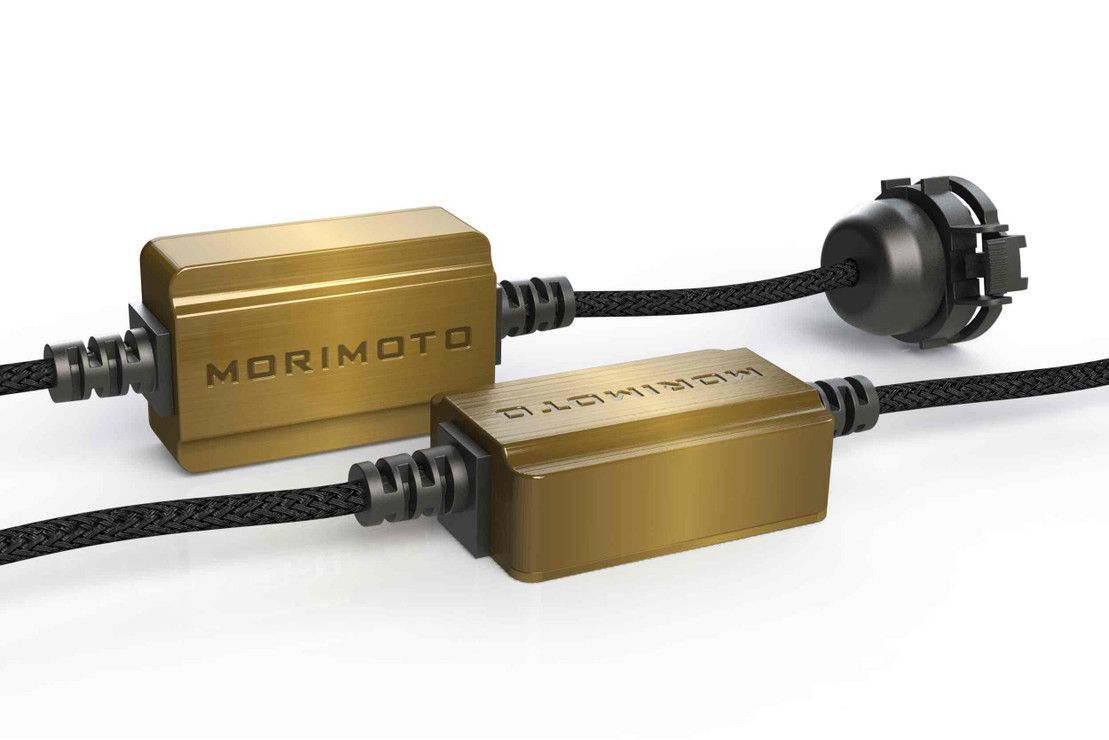

DRL DRIVE FUNCTION:

Configured to accommodate a wide input voltage range, the LED Driver of the 2Stroke 3.0 is optimized for compatibility with modern vehicles' low voltage daytime running lights. Upon detecting input of 6-9V, the system logic adeptly reduces output to 30% of the standard, generating an appropriate output for daytime running lights. In this mode, the cooling fan ceases operation to preserve power and lifespan. For vehicles featuring a PWM-based DRL signal, an inline PWM module producing clean DC6V is required. The completely potted driver ensures complete weather resistance. It is important to note that the DRL-Drive function is intended exclusively for non-US markets.
