Morimoto 9012 3.0

Product Details

PIONEERING INNOVATION:

Over the past year, Morimoto has been in relentless pursuit of groundbreaking LED bulb technology. Their unwavering commitment has birthed a novel LED bulb that ingeniously replicates the original beam pattern from your optics, achieving superior results with optimal efficiency. This advancement not only floods the road with enhanced illumination for drivers but also minimizes glare for oncoming traffic, outshining all other LED bulbs currently available. While regulatory approval for LED headlights within the US remains pending, international markets and fog light enthusiasts can revel in the finest plug-and-play LED bulb to date: the exceptional 2Stroke 3.0. (Patents Pending)

UNSURPASSED LIGHT PRECISION:

The heart of the 2Stroke 3.0 lies in its cutting-edge PCB technology, setting an industry precedent by featuring an ultra-thin emission surface interval of merely 2mm. This intricate design showcases a 1.0mm thick PCB core, with a 300um dielectric layer, a 140um circuit pattern, and Osram Oslon HKL351.TE LED chips measuring just 0.43mm each. These components, coupled with the 1.03 x 4.33mm light-emitting surface area of the LEDs, collectively form a compact 4.46mm cubic volume. Notably, the Morimoto 2Stroke 3.0 boasts unparalleled accuracy in emulating the filament size of incandescent bulbs, a key factor for precise beam distribution—a feature indispensable to those well-acquainted with the subject matter.

PRECISE FOCUS DISTANCE:

Meticulous optimisation characterises each variant within the 2Stroke 3.0 lineup, ensuring optimal output for each designated application. The vital reference distance is meticulously calculated based on the bulb base's geometry and the footprint of the Osram HKL emitter. To ensure unwavering consistency, specialised tools were devised to meticulously verify the precision of each bulb upon leaving the production line. A marked departure from the norm seen in other LED fog light bulbs, which often employ a standardised reference distance across all sizes in a series, the 2Stroke 3.0 redefines standards with its meticulous individualised approach.

COMPLETE ILLUMINATION CONTROL:

The 2Stroke 3.0 LED bulbs introduce a fully adjustable base, tailored to harness the diverse optical facets inherent in various reflectors or projectors. To optimally leverage these facets, the light-emitting diodes must be oriented towards the 3-o-clock and 9-o-clock positions. Recognizing the absence of a universal standard among different headlight and fog light assemblies, the 2Stroke 3.0 range boasts full adjustability. With a geared step rotational adjuster mechanism for twist-to-lock bulbs, allowing adjustments in 15-degree intervals, and an all-encompassing omni-adjustable rotation mechanism for press-fit or clip-in bulbs, this range embodies unmatched versatility.

EFFICIENT HEAT MANAGEMENT:

Upon installation, the enclosed high-speed fan within the 2Stroke 3.0 is expertly sealed, marking a groundbreaking innovation as the first actively cooled LED bulb featuring a fan that's impervious to external elements. A unique internal circulation cooling system harnesses a 12,000-rpm cyclone fan, drawing cool air into the bulb's interior and expelling warm air outward into the housing. This intricate process keeps the bulb at an optimal temperature while simultaneously elevating the housing's ambient temperature, minimizing snow and ice buildup on the lens during colder months. The thermal management system within the 2Stroke 3.0 not only preserves the bulb's longevity but also presents an unprecedented advantage in inclement weather, a remarkable feature absent elsewhere. This innovative cooling system is fortified by US Patent #11079090.

DAYTIME RUNNING LIGHT CONTROL:

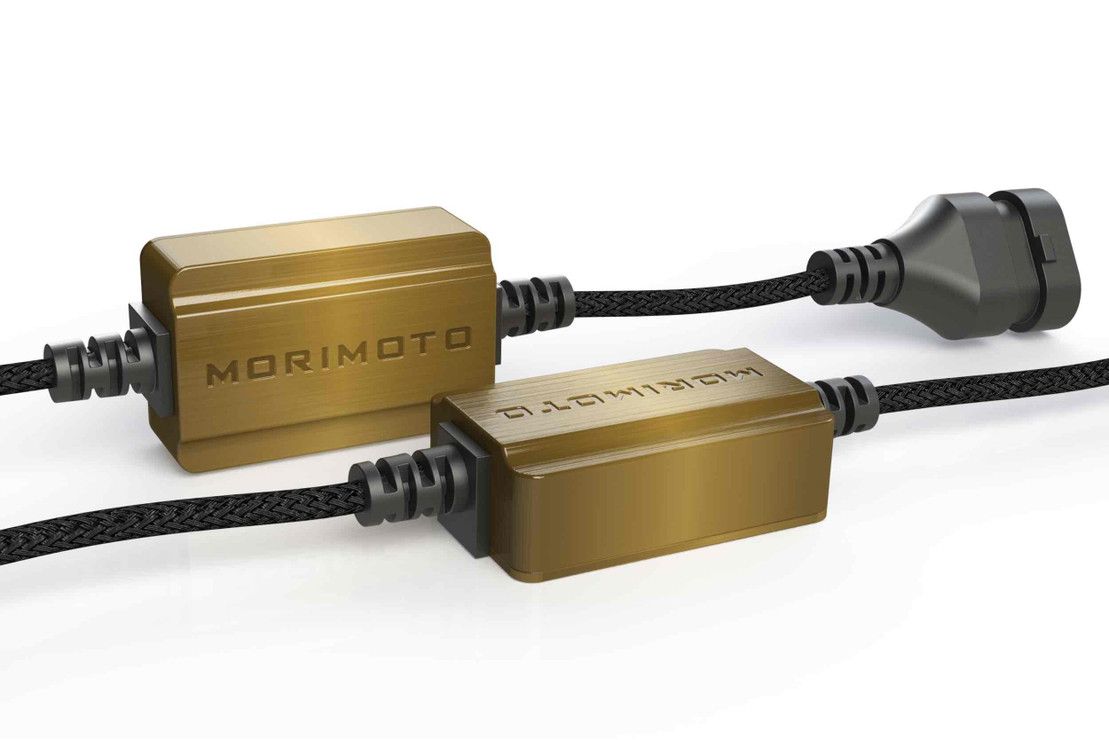

The 2Stroke 3.0's LED Driver boasts versatile configuration, readily accepting a wide range of input voltages, rendering it compatible with the prevalent low-voltage daytime running lights seen in contemporary vehicles. When the LED driver detects an input of 6-9V, the system logic seamlessly adapts, producing a reduced output of merely 30% of the standard level. Operating at a low power drive rate of 250mA, each emitter generates a mere 460lm, rendering the 2Stroke 3.0 the ideal choice for daytime running lights. In this mode, the cooling fan deactivates, conserving both power and lifespan. For vehicles employing a PWM-based DRL signal, integration of an inline PWM module generating a clean DC6V is essential. Encased within a protective potting, the driver assures complete weather-proofing. It's important to note that the DRL-Drive functionality is exclusively applicable in non-US markets.

ESTABLISHED TRUST:

Through more than a decade of dedicated efforts, we've diligently cultivated a sterling reputation. Enthusiasts worldwide recognize TRS as the go-to source for the finest selection of high-performance automotive and powersport lighting products, consistently available at the most competitive prices. Our team of genuine enthusiasts is a testament to our unwavering commitment to excellence. Every product we offer has been rigorously tested on our own vehicles, ensuring their quality and reliability. Whether seeking expert recommendations for your project or in need of technical insights, our adept professionals are always ready to assist. For wholesale inquiries or any other assistance, please feel free to get in touch.
